Refurbishment · Somerset

Brakes Motor Company, Ilminster

Single and twin skin asbestos cement roofs replaced across a motor company's buildings, over concrete portal frames that were neither square nor straight.

Roof area: c. 1,900 m²
Roof panels: Kingspan KS1000RW
Delivered: On time and on budget

The project

Around 1,900 m² of single skin and twin skin asbestos cement roof coverings removed and replaced at Brakes Motor Company in Ilminster.

The new roofs are Kingspan KS1000RW composite panels with Filon roof lights. Between the frames we installed new insulated gutters complete with Plygene linings by HD Sharman, and the elevation cladding between the roof areas was removed and replaced with new panels.

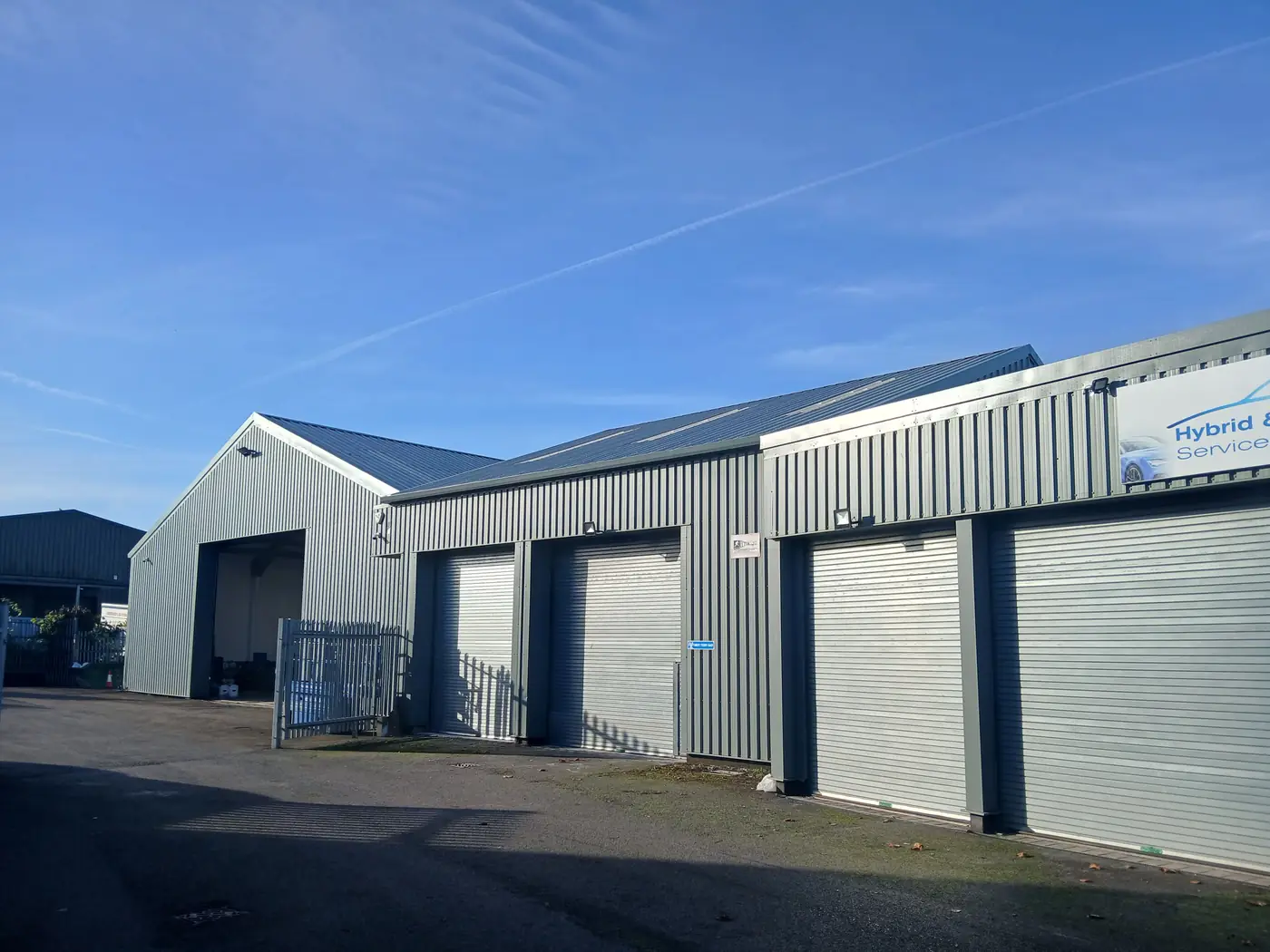

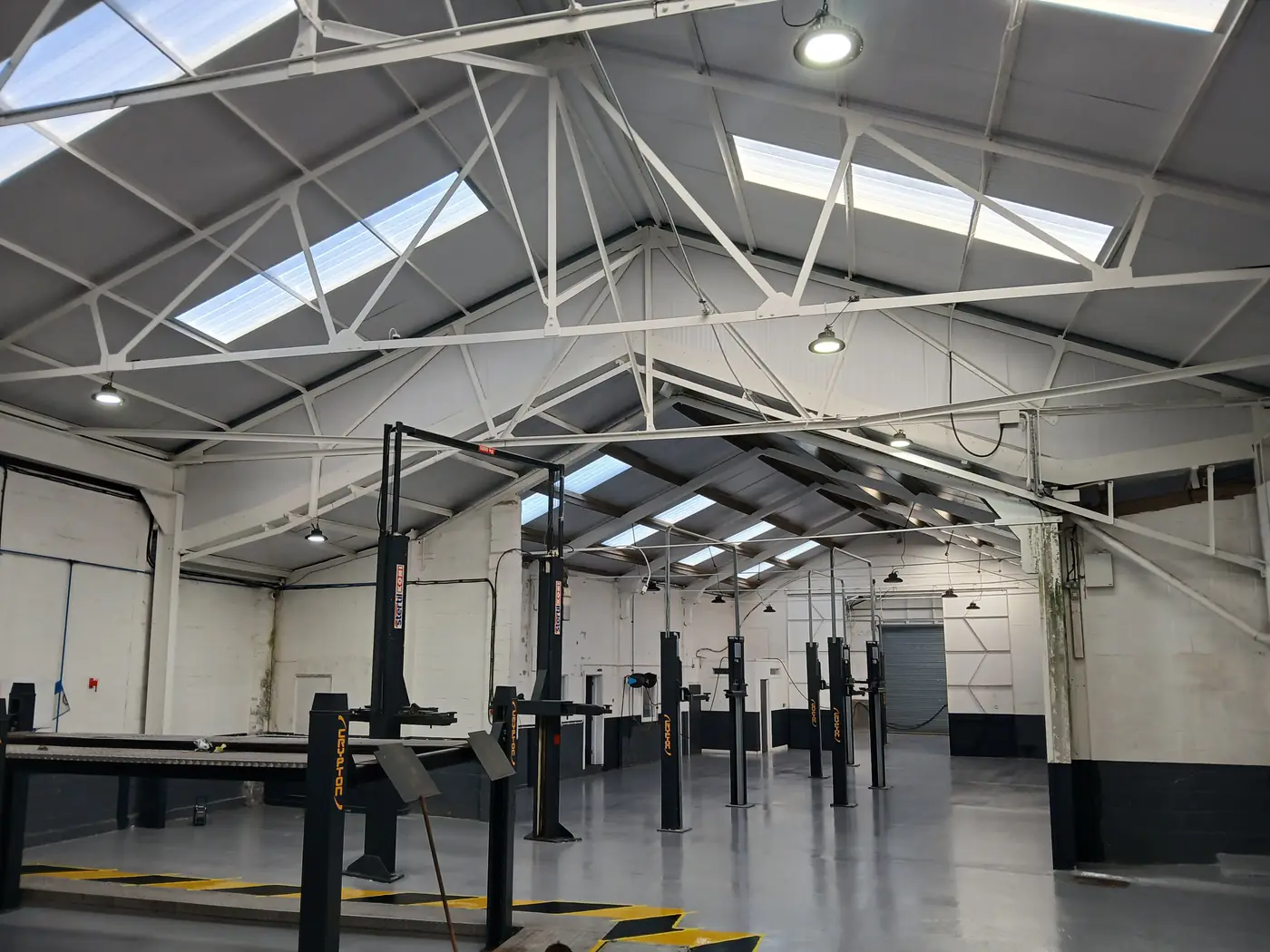

The work gives the buildings a brand-new feel and appearance, inside and out, and was completed on time and on budget.

Concrete FramesNew timber framework to form fixing points for the panels.
New GuttersInsulated gutters with Plygene linings between the frames.
On BudgetCompleted on time and on budget.

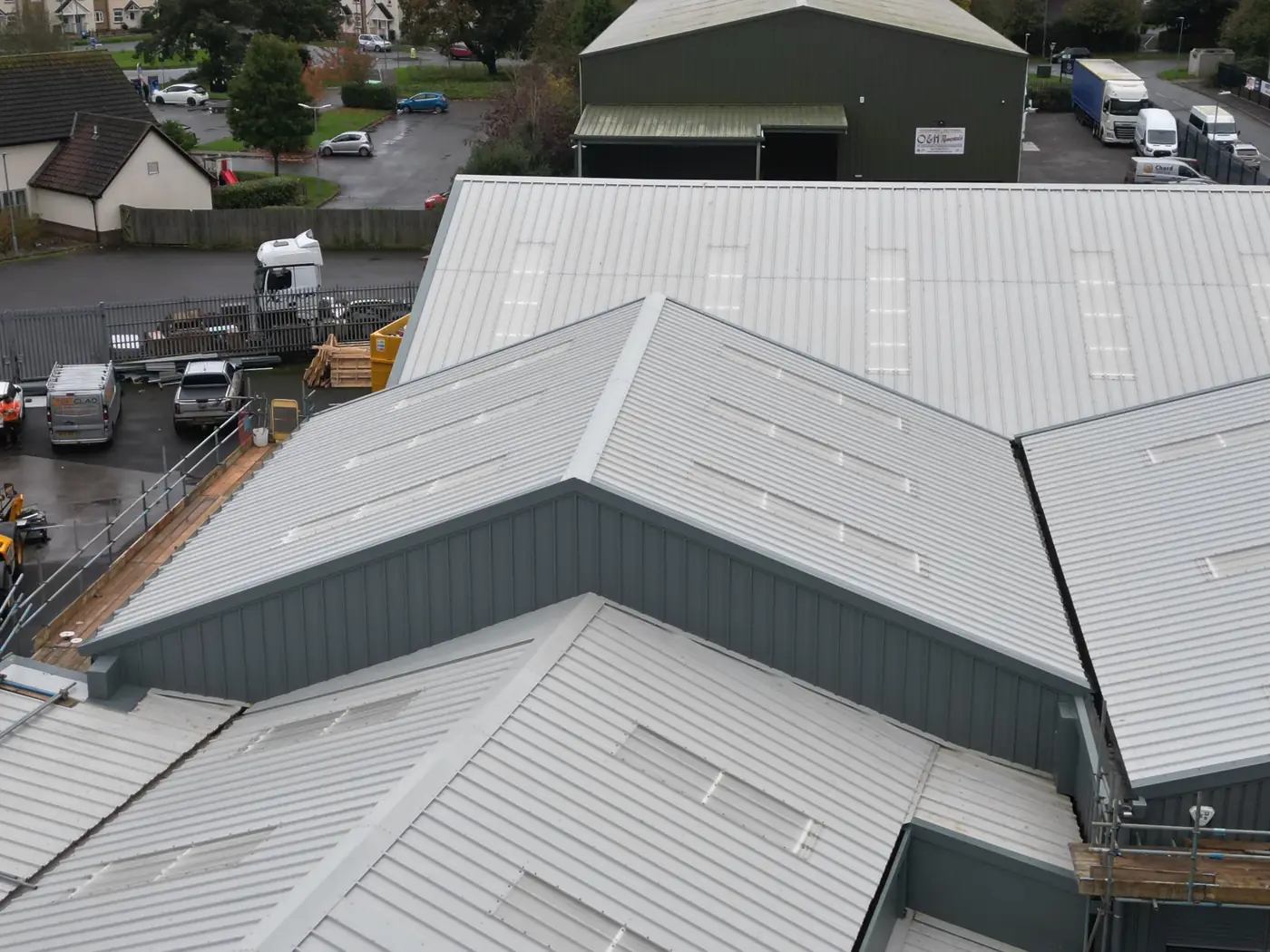

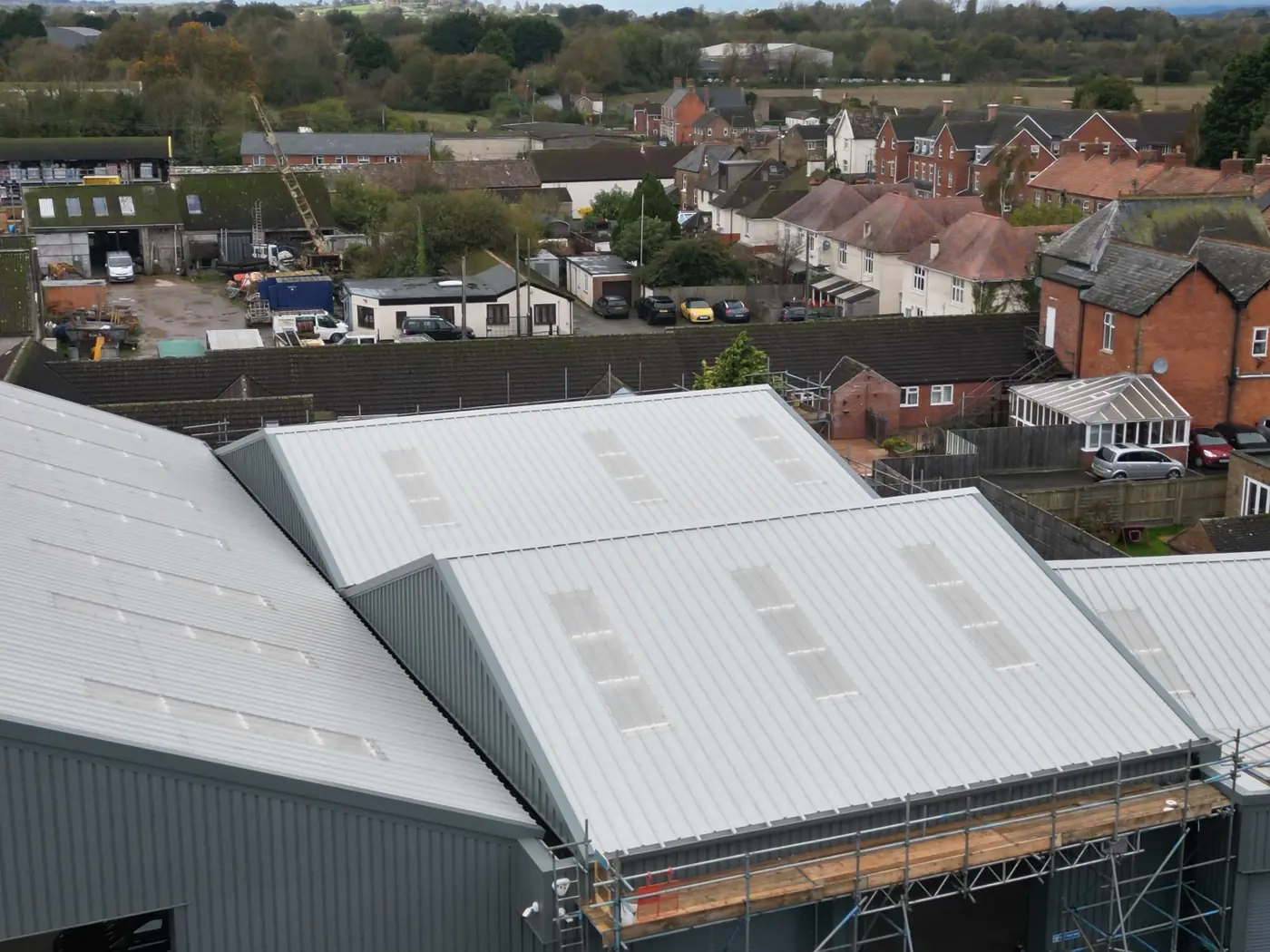

Aerial view of the new composite roofs at Brakes Motor Company

Scope and specification

Roof area: c. 1,900 m²
Roof panels: Kingspan
KS1000RW
Roof lights: Filon
Gutter linings: Plygene
by HD Sharman

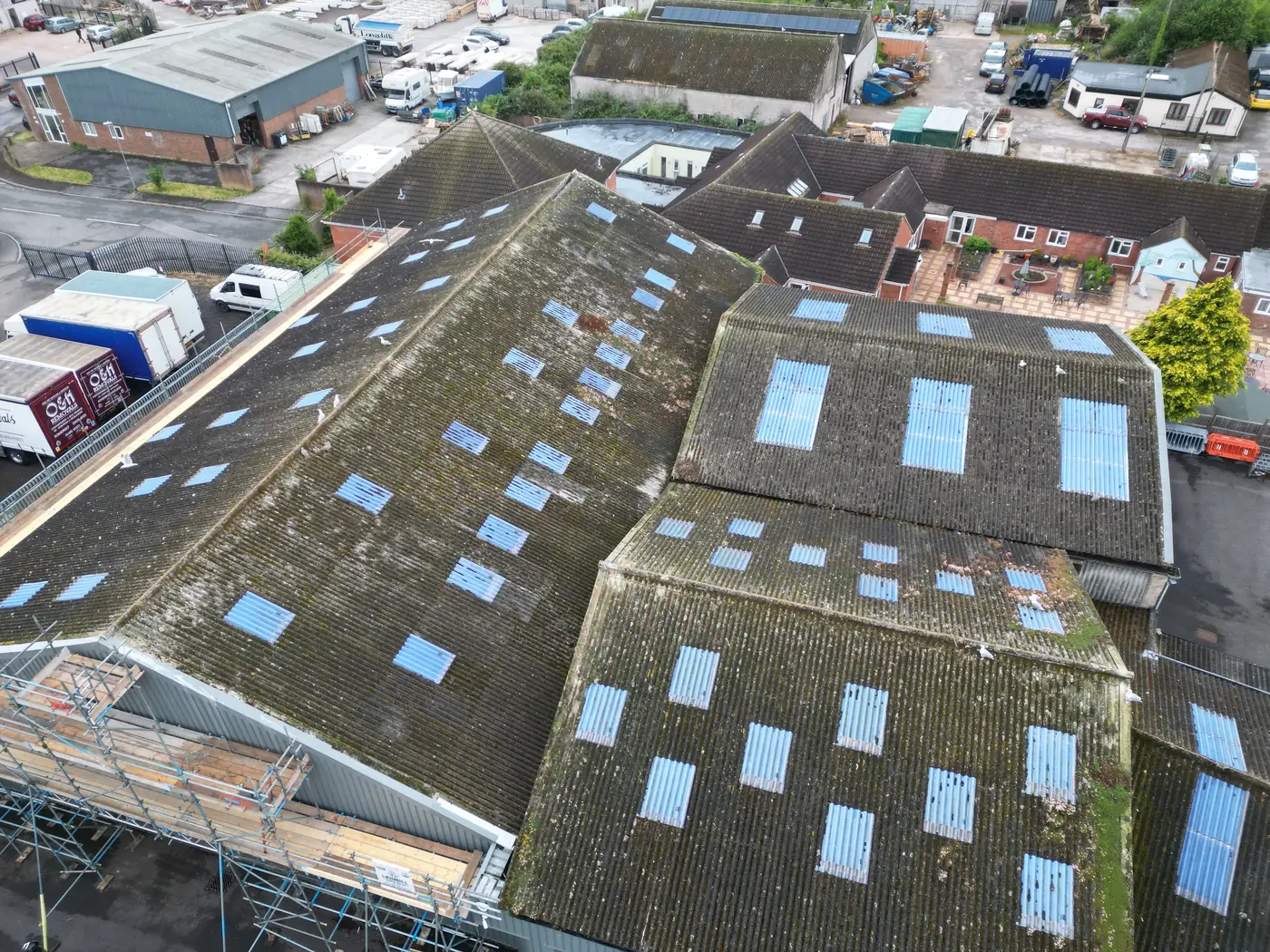

Removal of single and twin skin asbestos cement roofs
New timber framework over concrete portal frames
New insulated gutters between the frames

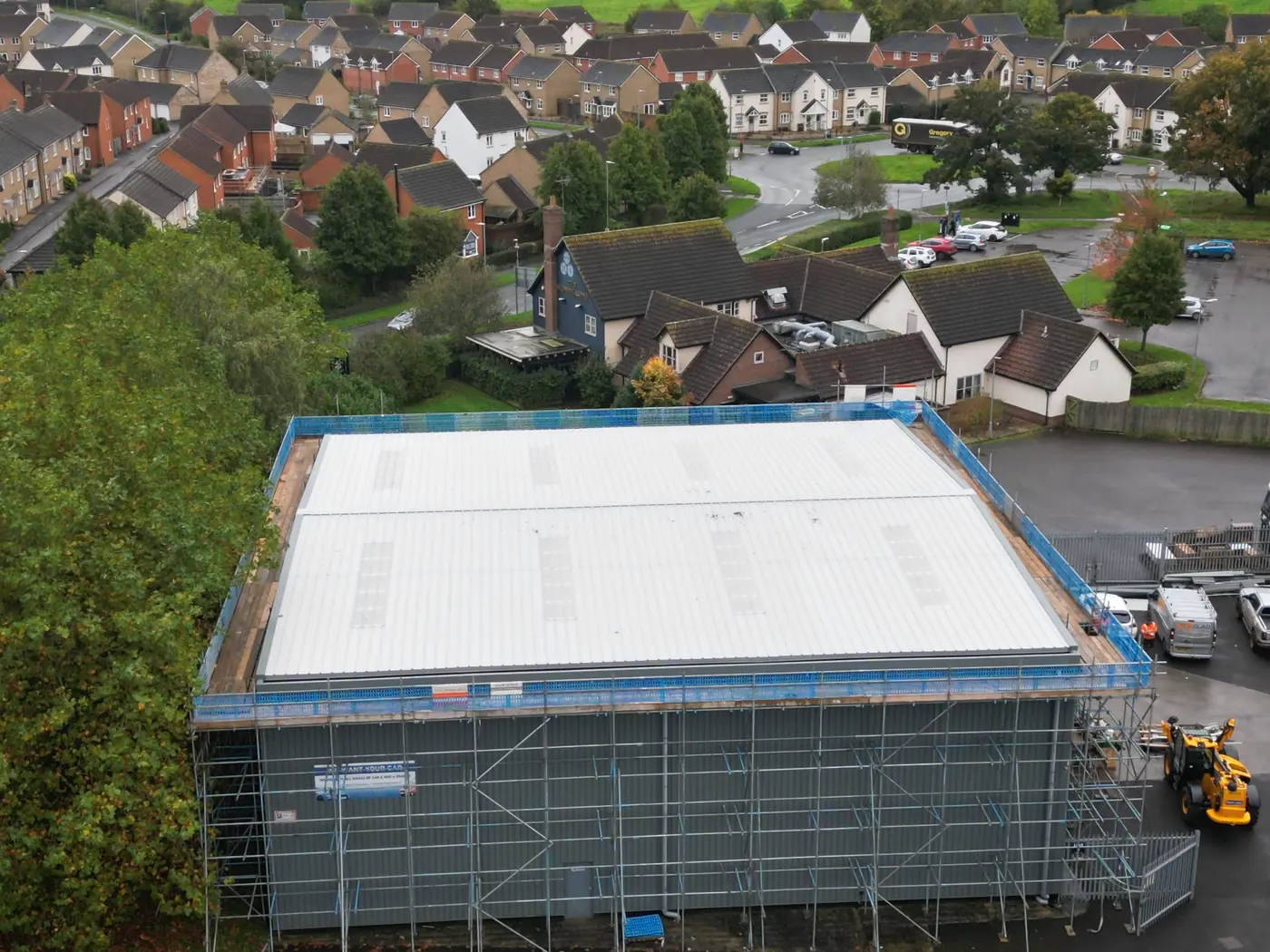

Elevation cladding between roof areas replaced

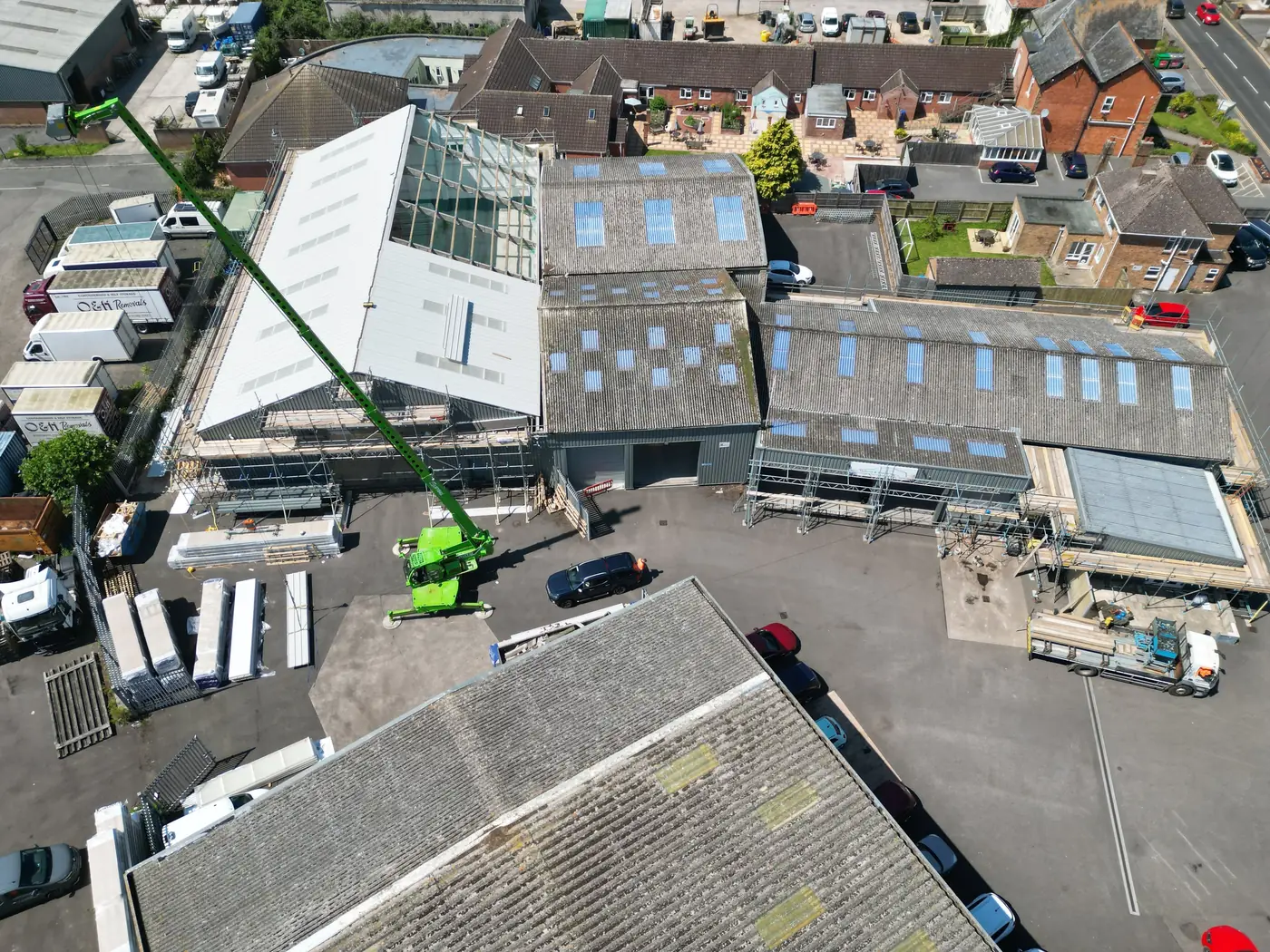

New roof panels being lifted into place by crane

The challenge

Concrete frames, no straight lines

Many of the portal frames are concrete, so we installed a new timber framework on them to form new fixing locations for the roof panels.

None of the frames were square or straight, and the roofs included dual pitch slopes. It was a very challenging refurbishment, carried out with the aid of specialist equipment.

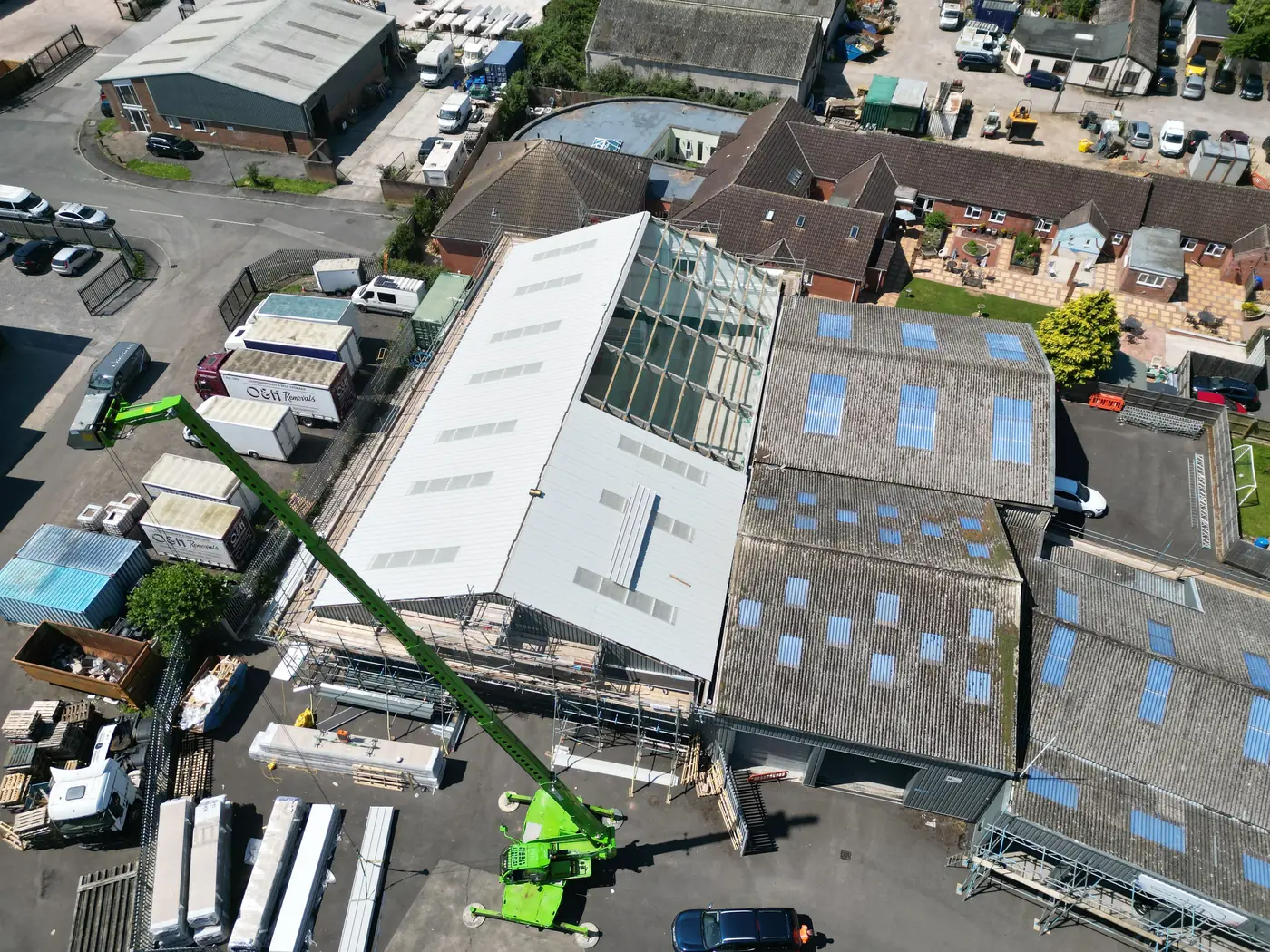

Before and during
